flyluaioscripts

Lua hardware mapping profiles for FlyLuaIO — the successor to qmdev.

FlyLuaIO bridges USB HID/MobiFlight cockpit panels to X-Plane 11/12 and Microsoft Flight Simulator 2020/2024. This repository contains the shared Lua framework and aircraft-specific profile scripts loaded by the FlyLuaIO plugin.

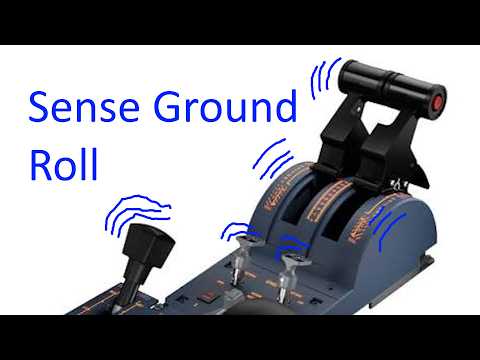

Demo Video

Features

• Real-Time Add Device: Json + Lua is a new Device without compiling code
• ZERO X-Plane FPS impact: Embedded LuaJIT is not the same performance model as typical market LuaJIT plugins (XLua, SASL, FlyWithLua). Those usually run Lua every frame on the sim / flight-loop thread (community reports show material frametime cost on complex aircraft); FlyLuaIo runs script work off that path — absolutely zero impact on X-Plane FPS.
• Automatic Flight Device Key Assignment: Say goodbye to the pain of manually setting hundreds of keys.
• Smooth Aircraft Switching: Say goodbye to the hassle of searching the entire internet for configuration files.
• Rotary Knob Acceleration: Optimizes your operational experience.
• Built-in Lua Language Engine: Simple to use and easy to customize.
• Easy Debugging：Automatically reload Lua scripts After Editing the Lua file, speeding up the debugging process.
• Aircraft State Synchronization: Supports cold and dark cockpit state synchronization.
• Simulated Failure Synchronization: Supports synchronization of simulated aircraft failure states.
• Cross-platform Operation: Fully supports Windows, Linux, and Mac systems.
• Native Apple ARM Support: Provides native support for Apple M-series chips.
• JSON defined USB HID: Add Json, add a USB HID Device
• JSON defined MobiFlight: Add Json, add a MobiFlight serial device
• MobiFlight Serial Auto-Match: Boards matched by serial from mobiflight/*.json
• MobiFlight IO Bridge: Buttons, encoders, steppers, servos, shift registers, segment/LCD
• Skunkcrafts Support: Easy update software small changes

Performance note (plugin runtime)

FlyLuaIO’s embedded LuaJIT is not the same performance model as typical market LuaJIT plugins (XLua, SASL, FlyWithLua), which usually run Lua every frame on the X-Plane sim / flight-loop thread. FlyLuaIO runs script work on a dedicated worker path; the product claim is ZERO X-Plane FPS impact. (This repo only ships scripts; the runtime lives in the plugin.)

Requirements

• FlyLuaIO plugin installed in your simulator
  • Download: https://gitee.com/FlyLuaIo/flyluaio/releases
• Supported FlyLuaIO hardware (MCP, CDU, FCU, G1000, overhead panel, etc.)

Repository layout

flyluaioscripts/
├── com/          Shared framework (OOP, Qmdev base class, hardware drivers)
├── xp/           X-Plane aircraft profiles
├── msfs/         MSFS aircraft profiles
├── joysticks/    USB HID device JSON (+ joystick-config.schema.json)
├── mobiflight/   MobiFlight device JSON (+ mobiflight-config.schema.json)
└── LUA_API_DEVELOPER_GUIDE.md

Directory	Purpose
com/oop/	Lua OOP infrastructure
com/sim/qm/	Hardware device classes (Qmcp737c, Qcdua, Qfcu, …)
com/sim/wf/	Wingflex / third-party adapters
com/sim/mf/	MobiFlight device classes (CfMega, CfNano, KayeRoof, RfA107, RfA112)
xp/	X-Plane mapping scripts ({DEVICE}_{AIRCRAFT}.lua)
msfs/	MSFS mapping scripts
joysticks/	HID panel configs validated by joystick-config.schema.json
mobiflight/	MobiFlight device JSON configs (see MobiFlight below)

Profile naming:

• {DEVICE}_{AIRCRAFT/ADDON}.lua — aircraft-specific mapping
• z_{DEVICE}_GA.lua — General Aviation fallback
• z_{DEVICE}_no_msfs.lua — disable on MSFS

MobiFlight

FlyLuaIO supports MobiFlight hardware modules as an alternative to USB HID panels — especially useful for custom home-cockpit builds with Arduino-based boards.

Supported devices:

Device class	Hardware	Description
CfMega	MobiFlight Mega	Full-featured board (256 KB flash, many I/O pins)
CfNano	MobiFlight Nano	Compact board (Pro Micro based)
KayeRoof	KayeRoof custom board	Large overhead panel
RfA107	Rowsfire A107	Overhead panel module
RfA112	Rowsfire A112	Overhead panel module

Each device has a JSON definition in mobiflight/ (validated by mobiflight-config.schema.json) and a generated Lua class in com/sim/mf/. Aircraft-specific binding scripts live under msfs/ (prefix CF*, RF*, KAYEROOF_*).

For XP generic / GA fallback, see xp/z_*_GA.lua files.

Documentation

Full API reference, examples, and troubleshooting:

LUA_API_DEVELOPER_GUIDE.md

Device JSON schemas:

• joysticks/joystick-config.schema.json
• mobiflight/mobiflight-config.schema.json

Codegen that turns device JSON into Lua classes lives in the private sibling tooling that maintains this tree (not required for end users who only load profiles).

Quick start

1. Install the FlyLuaIO plugin and connect your hardware.
2. Place or symlink this repository where the plugin loads scripts from.
3. Find a profile for your hardware and aircraft under xp/ or msfs/.
4. To add a new mapping, copy the closest existing profile and adjust dataref paths and aircraft guards.

Minimal profile skeleton:

local device = com.sim.qm.Qmcp737c.Open()
if not device then return end

device:CfgCmd(0, "sim/autopilot/heading_down")
GlobalFrameLoopManager:add(function() device:LoopMcp() end)

Notes

• Files under com/ marked Don't modify this file are framework core.
• Runtime APIs (ulua*, ilua*, iDataRef, GlobalFrameLoopManager) are provided by the FlyLuaIO plugin, not this repository.
• Legacy code identifiers such as Qmdev and uluaQmdevConfig are retained from the qmdev era for compatibility.
