Human detection & tracking package for ROS

Uses a combination of laser range finder and a computer vision module for the pedestrian detection. The vision module works with OpenCV's detector which uses Histogram of Oriented Gradients and Support Vector Machines.

For pairing observations and tracking it uses a combination of Kalman filters and Mahalanobis distance.

The code was written for the ROTOS project in the RobCib research group of the Polytechnic University of Madrid.

Publications

If you use this code please reference the following works:

Mario Andrei Garzon Oviedo , Antonio Barrientos , Jaime Del Cerro , Andrés Alacid , Efstathios Fotiadis , Gonzalo R. Rodríguez-Canosa , Bang-Chen Wang. Tracking and following pedestrian trajectories, an approach for autonomous surveillance of critical infrastructures. Industrial Robot: An International Journal, 2015 42:5 , 429-440

Bibtext entry:

@article{doi:10.1108/IR-02-2015-0037,
author = { Mario Andrei Garzon Oviedo  and  Antonio Barrientos  and  Jaime Del Cerro  and  Andrés Alacid  and  Efstathios Fotiadis  and  Gonzalo R. Rodríguez-Canosa  and  Bang-Chen Wang },
title = {Tracking and following pedestrian trajectories, an approach for autonomous surveillance of critical infrastructures},
journal = {Industrial Robot: An International Journal},
volume = {42},
number = {5},
pages = {429-440},
year = {2015},
doi = {10.1108/IR-02-2015-0037},
URL = {http://dx.doi.org/10.1108/IR-02-2015-0037}
}

Fotiadis, E.P.; Garzón, M.; Barrientos, A. Human Detection from a Mobile Robot Using Fusion of Laser and Vision Information. Sensors 2013, 13, 11603-11635.

Bibtext entry:

@Article{s130911603,
AUTHOR = {Fotiadis, Efstathios P. and Garzón, Mario and Barrientos, Antonio},
TITLE = {Human Detection from a Mobile Robot Using Fusion of Laser and Vision Information},
JOURNAL = {Sensors},
VOLUME = {13},
YEAR = {2013},
NUMBER = {9},
PAGES = {11603--11635},
URL = {http://www.mdpi.com/1424-8220/13/9/11603},
PubMedID = {24008280},
ISSN = {1424-8220},
DOI = {10.3390/s130911603}
}

Videos

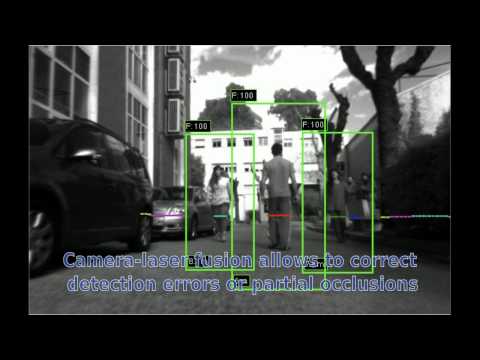

Human Detection with fusion of laser and camera

Human Detection with fusion of laser and camera

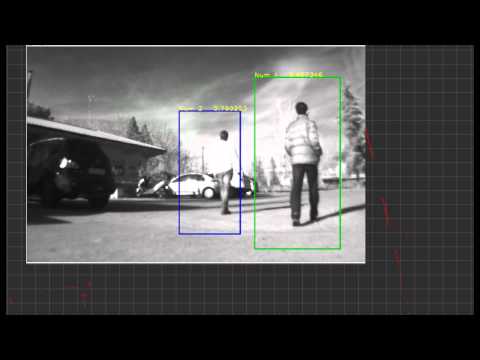

Autonomous detection tracking and following

Autonomous detection tracking and following

Requirements

  1. ROS (Indigo)
  2. libgsl
    • install it with: $ sudo apt-get install libgsl-ruby
  3. NEWMAT
    • install it with: $ sudo apt-get install libnewmat10-dev
  4. all the ROS components listed in the package.xml dependencies

How to compile

The code compiles only using catkin.

  • cd to catkin workspace
  • catkin_make hdetect

Demo the code

  1. Download this rosbag
  2. Change the recognizeBag.launch launchfile to point towards the rosbag
  3. Run roslaunch hdetect recognizeBag.launch
  4. Rviz is going to launch. Enable the image (camera)
  5. Wait till everything is launched and hit space to playback

Executable files

  • headlessRT - human detection without visualization and tracking
  • visualizeRT - human detection with visualization and without tracking
  • recognizeRT - human detection with tracking and without visualization
  • showRT - human detection with visualization and tracking
  • annotateData - annotate the human for training and save the result to csv file
  • trainLaser – train the annotation with given csv file and save the result to boost.xml

Launch files.

It is suggested to run the launch files than to run the bin files

  • headlessRT.launch - headlessRT on robot
  • headlessBag.launch - headlessRT with rosbag. The bag name can be changed inside the launch
  • visualizeRT.launch - visualizeRT on robot.
  • visualizeBag.launch - visualizeRT with rosbag. The bag name can be changed inside the launch
  • recognizeRT.launch - recognizeRT on robot.
  • recognizeBag.launch - recognizeRT with rosbag. The bag name can be changed inside the launch
  • showRT.launch - showRT on robot.
  • showBag.launch - showRT with rosbag. The bag name can be changed inside the launch
  • annotateBAG.launch - annotateData with rosbag. The bag name can be changed inside the launch.
  • trainLaser.launch - trainLaser with csv file. The file name can be changed inside the launch.

Brief explanation of the code

lengine

Segments the laser points into clusters

lfeature

Computes the features of the laser clusters

lgeometry

compute the geometry used by the computation of the features

laserLib

Loads the raw laser points

projectTools

Standard function for projection

header

Contains the enumeration of HUMAN, the static topic name, curTimeStamp and preTimeStamp

human

Structure for storing the value of the human detection and tracking

observation

Structure for storing the value casted from detection

object_tracking

Using Kalman filter to track the object, including predict and update

etector

Callback function of headlessRT, main function for detection, run the detection of laser and of image, then merge them together

visualizer

Callback function of visualizeRT, run the detector first, then plot them on the window

recognizer

Callback function of recognizeRT, run the detector first, then do the tracking of the human, and stand it to rviz

annotator

Callback function of annotateData, main function of the annotation

bagReader

read the bag for the annotation

Acknowledgements

The laser processing module uses code swritten by L. Spinello. The tracking module is based on the work of Gonzalo Rodriguez-Canosa
